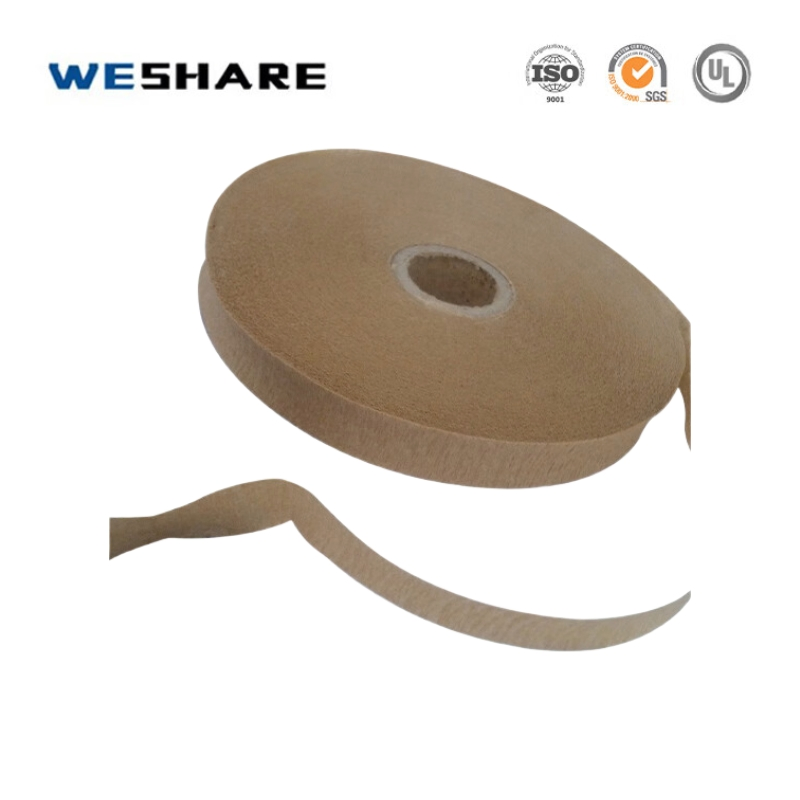

Natural Crepe Paper with Heat Resistance for Motor

1 / 5

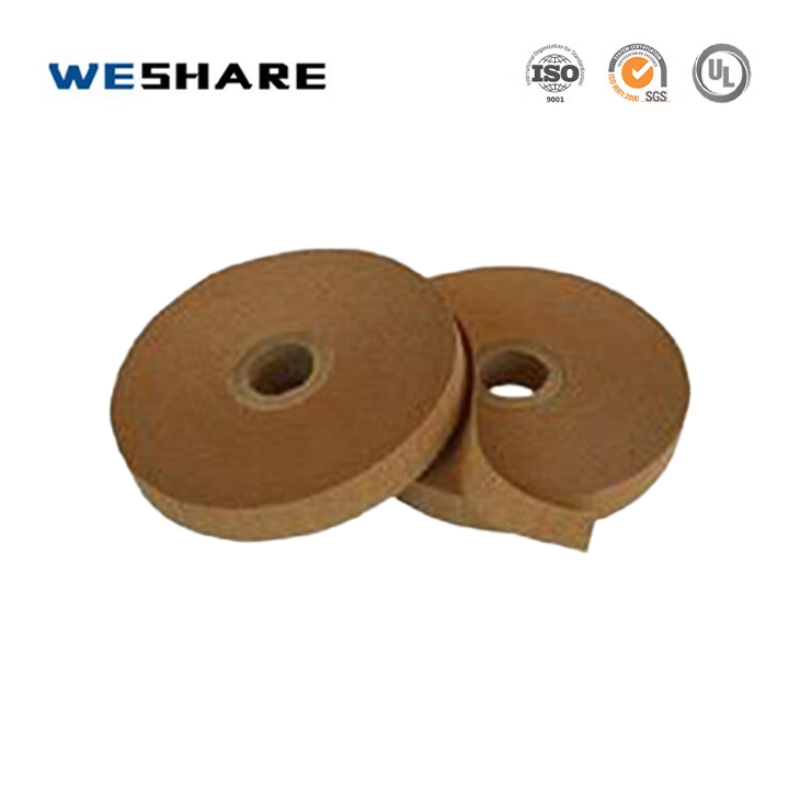

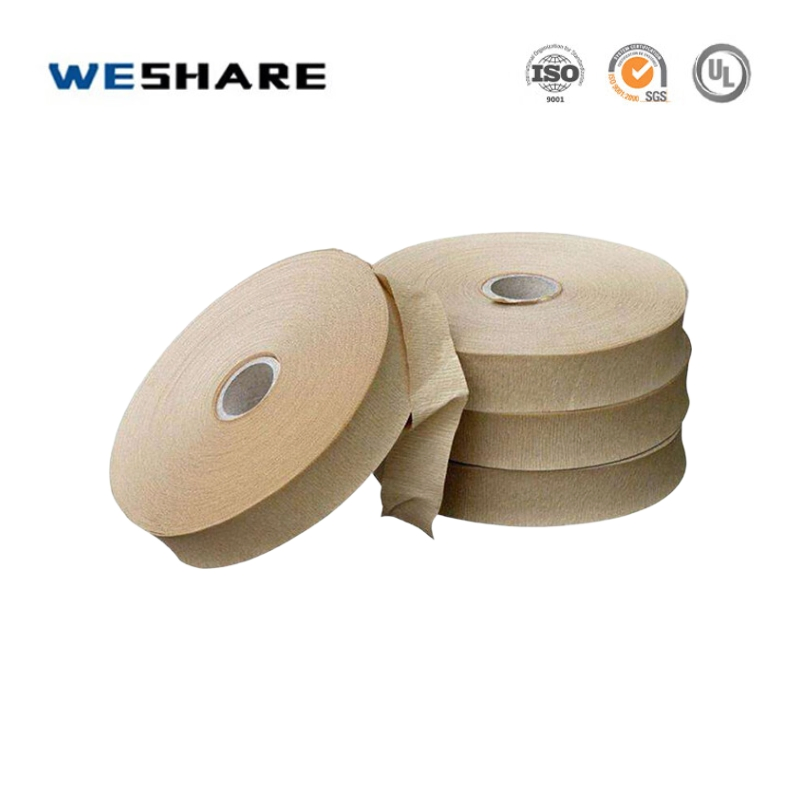

Natural Crepe Paper with Heat Resistance for Motor

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

Crepe paper

Material

Paper

Maximum Voltage

10KV~20KV

Thermal Rating

H 180

Thickness

0.35mm(Customized)

Length

Customized

Feature

Insulation

Usage

High Temperature Resistance and Wrapping

Production Capacity

25000kg/Month

Origin

China

📖 Product Description

Electrical insulation crepe paper is a high-performance insulation material based on high-purity cellulose, specially designed for transformers, motors and other high-voltage equipment.

It has excellent flexibility, heat resistance and oil absorption to provide reliable insulation protection in extreme environments. Whether it's high voltage winding filling or a moisture barrier, this product can help extend equipment life and increase operating efficiency. At the same time, it can be used as the base material of crepe paper tubes.

Excellent Flexibility: The unique wrinkle structure allows it to easily wrap complex-shaped electrical components with excellent fit.

Strong High Temperature Resistance: Remains stable in high temperature environments, suitable for transformers and motors.

Good Dimensional Stability: Not easy to deform or shrink under high pressure, humidity or high temperature conditions.

Professional Customized Services:
Supports various thickness, size and performance customization to meet the special needs of different electrical equipment. Offers custom processing such as stamping, cutting and forming services.

⚙ Product Parameters

ITEM	TYPICAL VALUES	MATTER OF FACT
Thickness: mm (crepe paper single layer)	0.35±0.05	0.334 (0.337; 0.332; 0.332)
Length : mm	±20mm	1005-1015
Inner diameter:	±5%	+(0-4)%
Outer diameter:	±5%	+(0-4)%
Apparent density: g/cm³ (Base paper)	0.75 to 0.85	0.82
Moisture content ,%	6.0 to 10.0%	7.1
PH water extract:	6.0 to 8.0	7.5
Ash content,% maximum	1%	0.43
Tensile strength (MD/CMD)	>1.3KN/M / >1.96KN/M	1.56KN/M / 1.90KN/M
Crepe rate: %	>50%	62%
Conductivity of aqueous extract: Ms/m	≤8.0	4.05
Dielectric breakdown (volts, dry test)	1000	1250

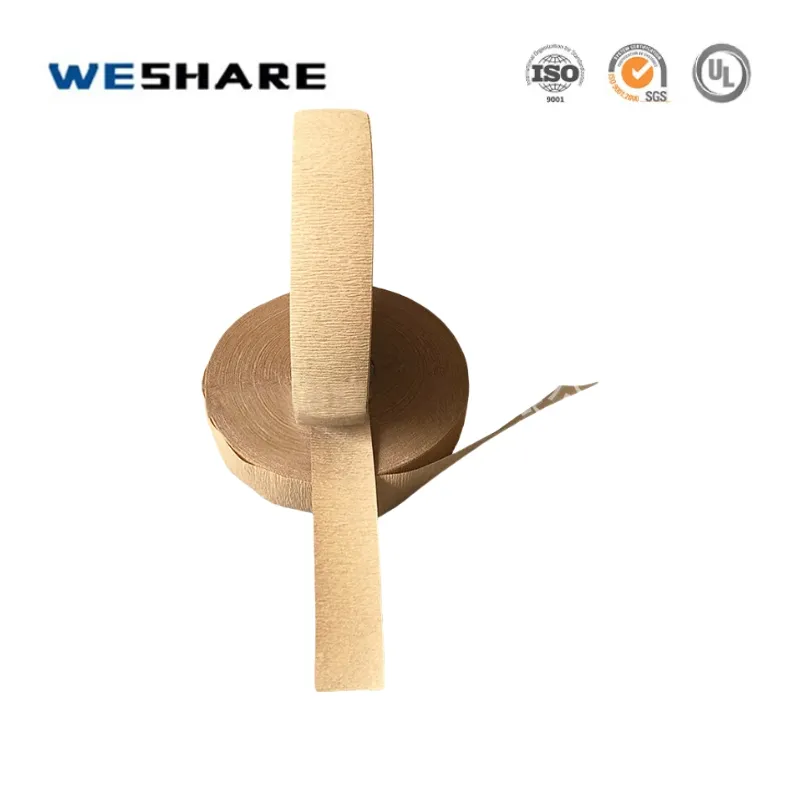

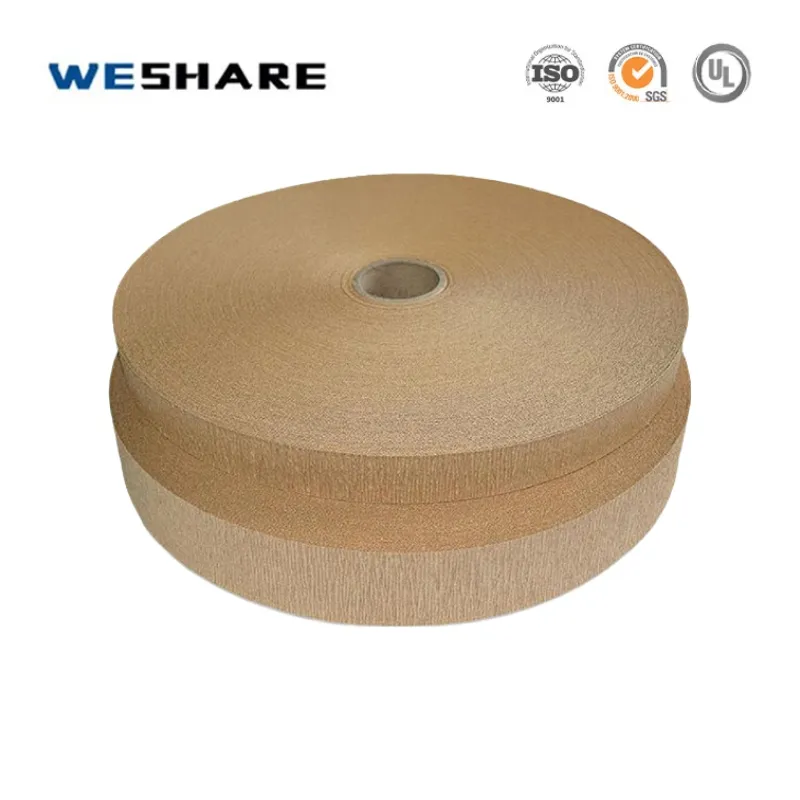

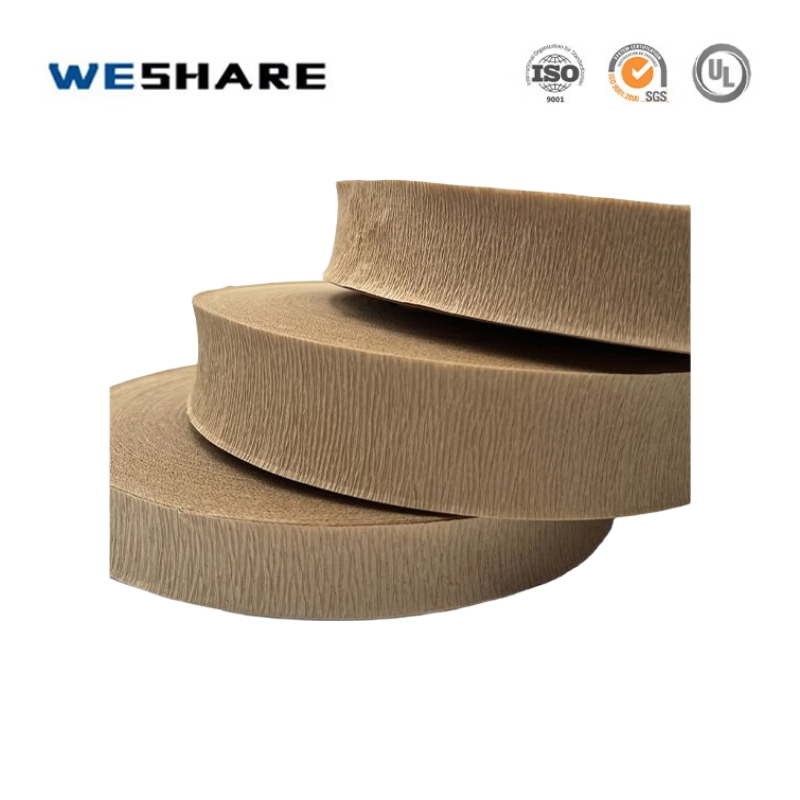

📷 Detailed Photos

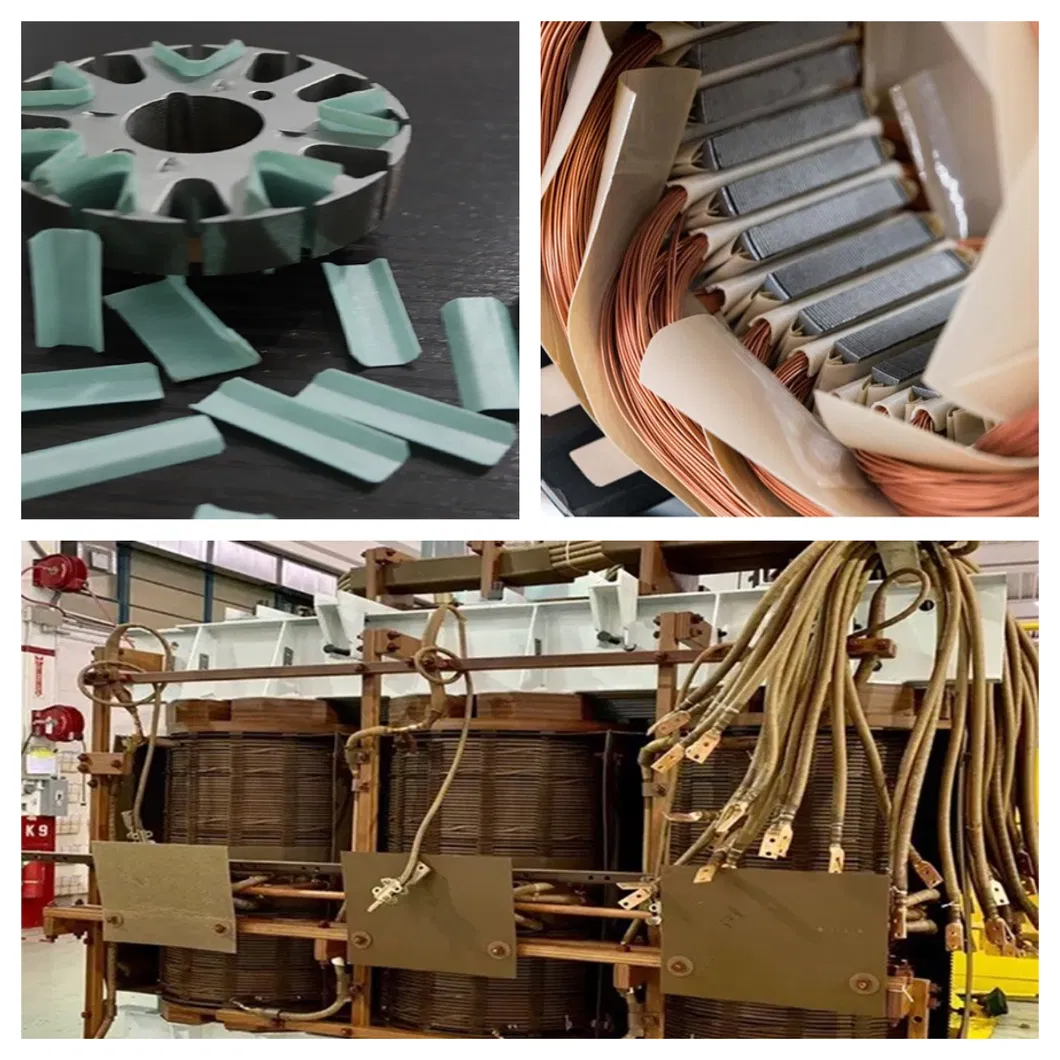

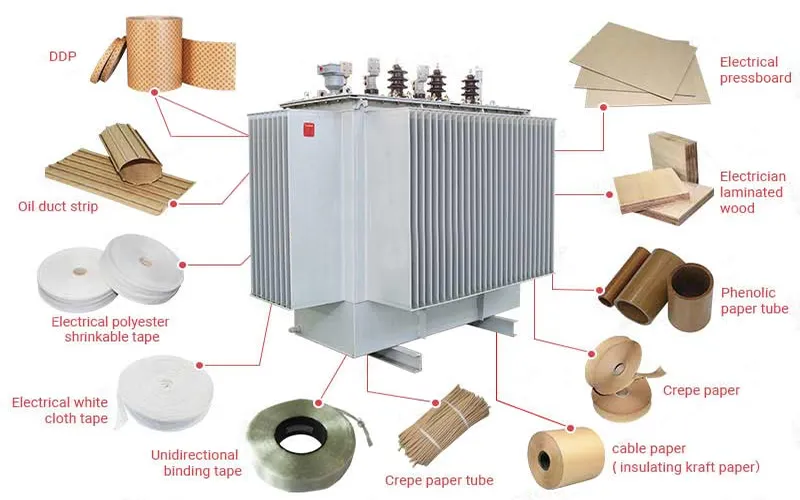

🚀 Application

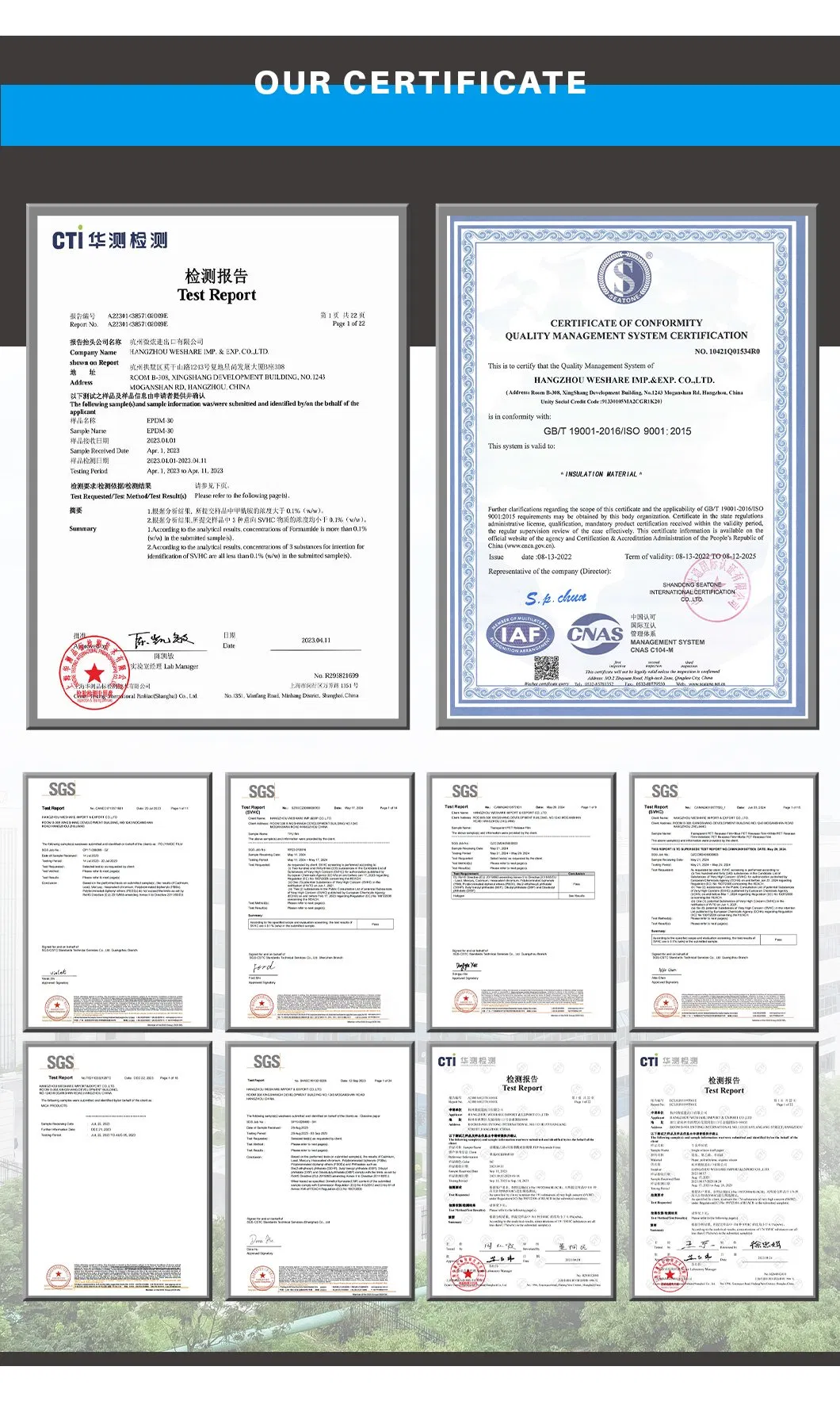

🎖 Certifications

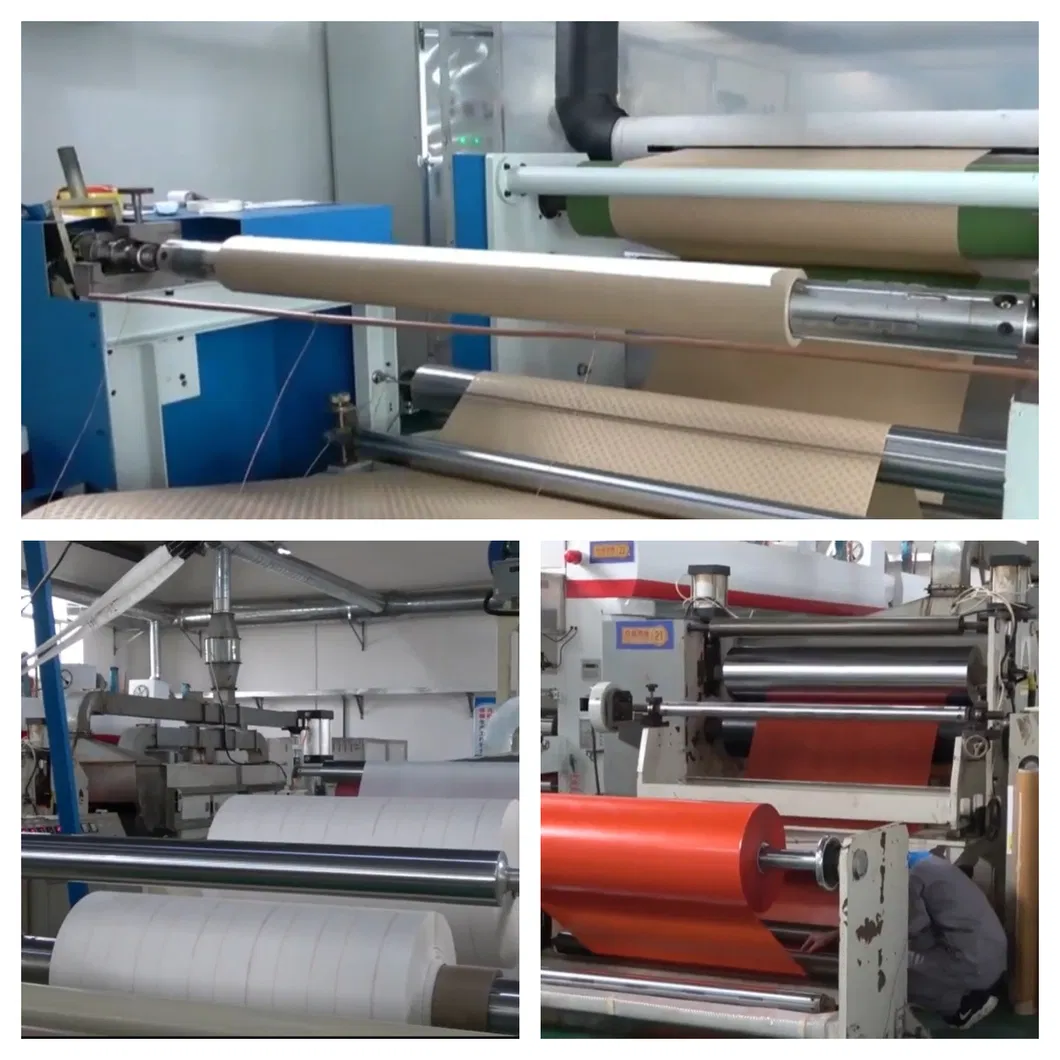

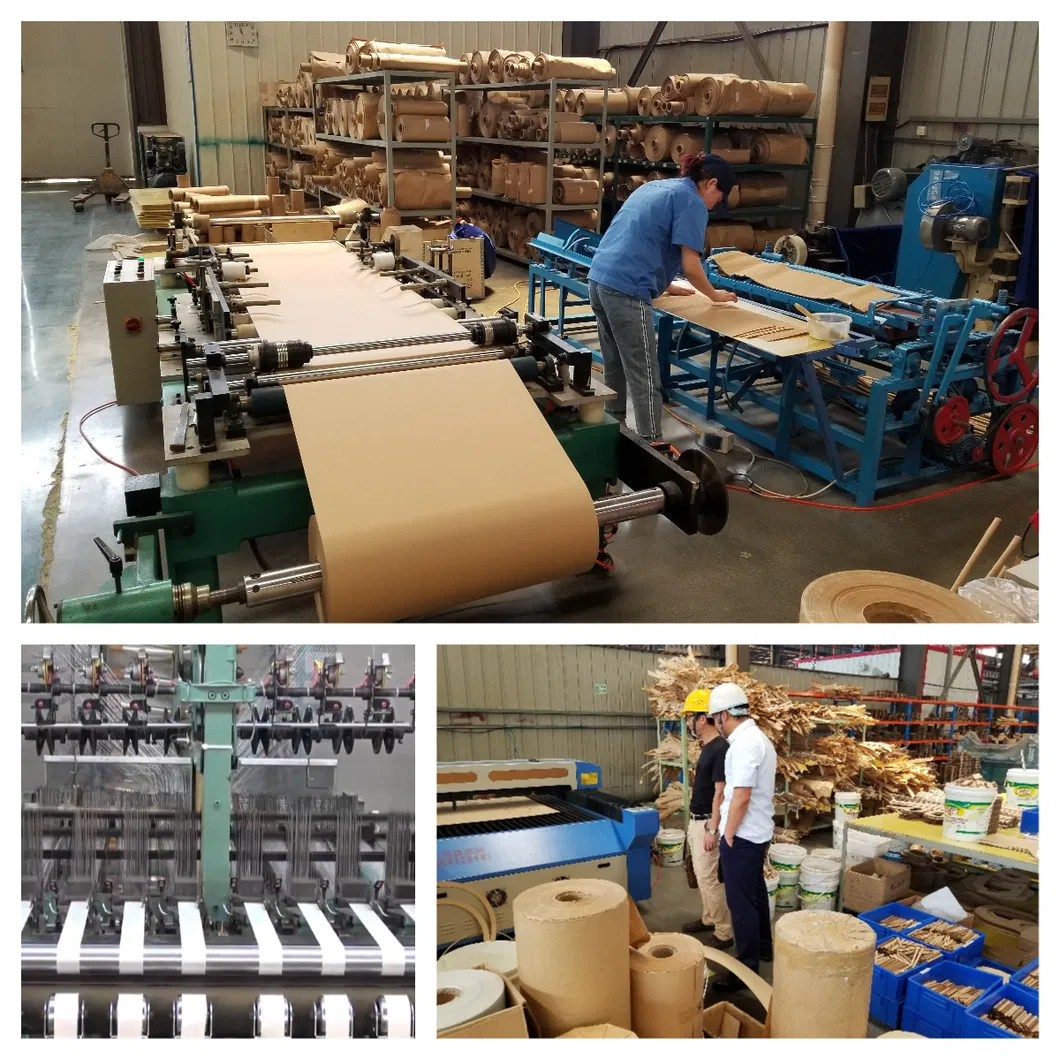

🏭 Production Facility

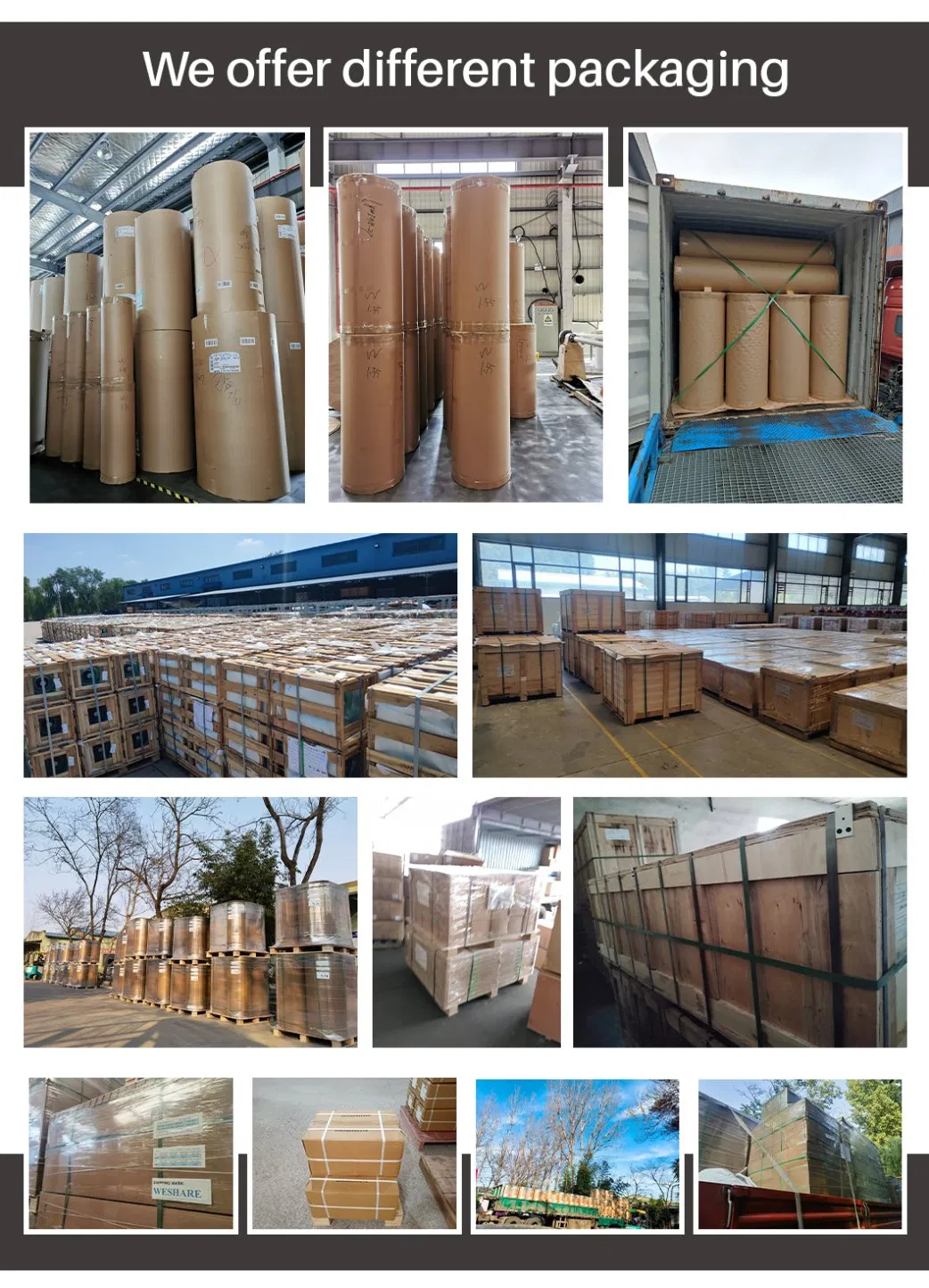

📦 Packing & Delivery

❓ Frequently Asked Questions

What is the primary use of electrical insulation crepe paper?

It is primarily designed for high-performance insulation in transformers, motors, and other high-voltage electrical equipment, often used for winding filling or moisture barriers.

What makes this paper suitable for complex components?

Its unique "wrinkle" or crepe structure provides exceptional flexibility, allowing it to easily wrap around complex-shaped parts with a tight, secure fit.

Can I get custom thicknesses or sizes?

Yes, we offer professional customized services. While 0.35mm is a standard thickness, we can adjust dimensions and performance parameters to meet your specific requirements.

What is the thermal rating of the material?

The material has a thermal rating of H 180, indicating high temperature resistance suitable for long-term heat exposure in industrial motors and transformers.

Is the paper oil-absorbent?

Yes, it features excellent oil absorption properties, which is critical for components submerged in transformer oil to maintain insulation integrity.

What is the typical production lead time?

Standard delivery usually takes between 10 to 15 days, depending on the order volume and customization requirements.
