| Model NO. | Steel Prop | Type | Slab Formwork |
|---|---|---|---|
| Material Grade | Q195/Q235/Q345 | Surface Treatment | HDG Galvanized, Painted, Powder Coating |
| Tube Diameter | 48/56mm, 48/60mm | Nut Type | Cup Nut/Single Ear/Double Ear |
| Advantages | Easy Assembling, Height Adjustable, Heavy Loads | Base Plate | Square/Flower/U Type/Fork Type |
| Production Capacity | 100,000 pieces/Year | Specification | 2-3.5m, 2.2-4m, Customized |

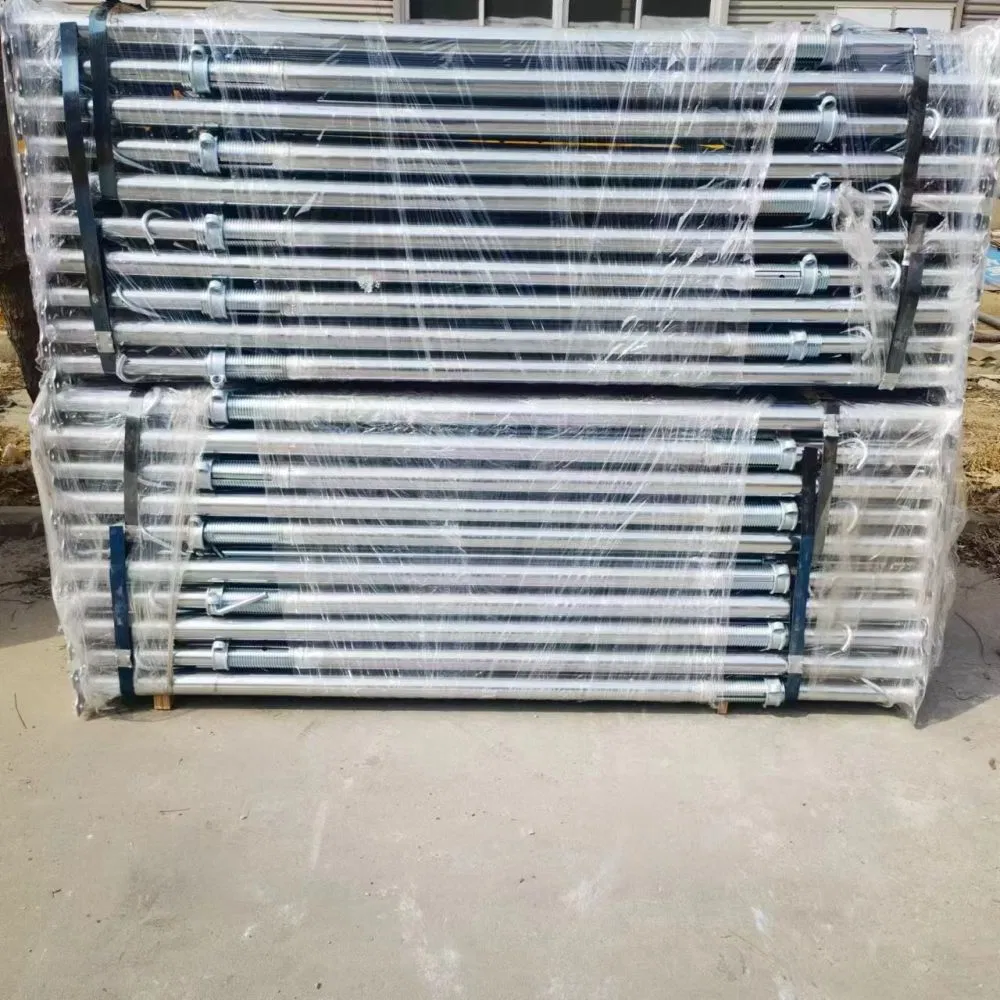

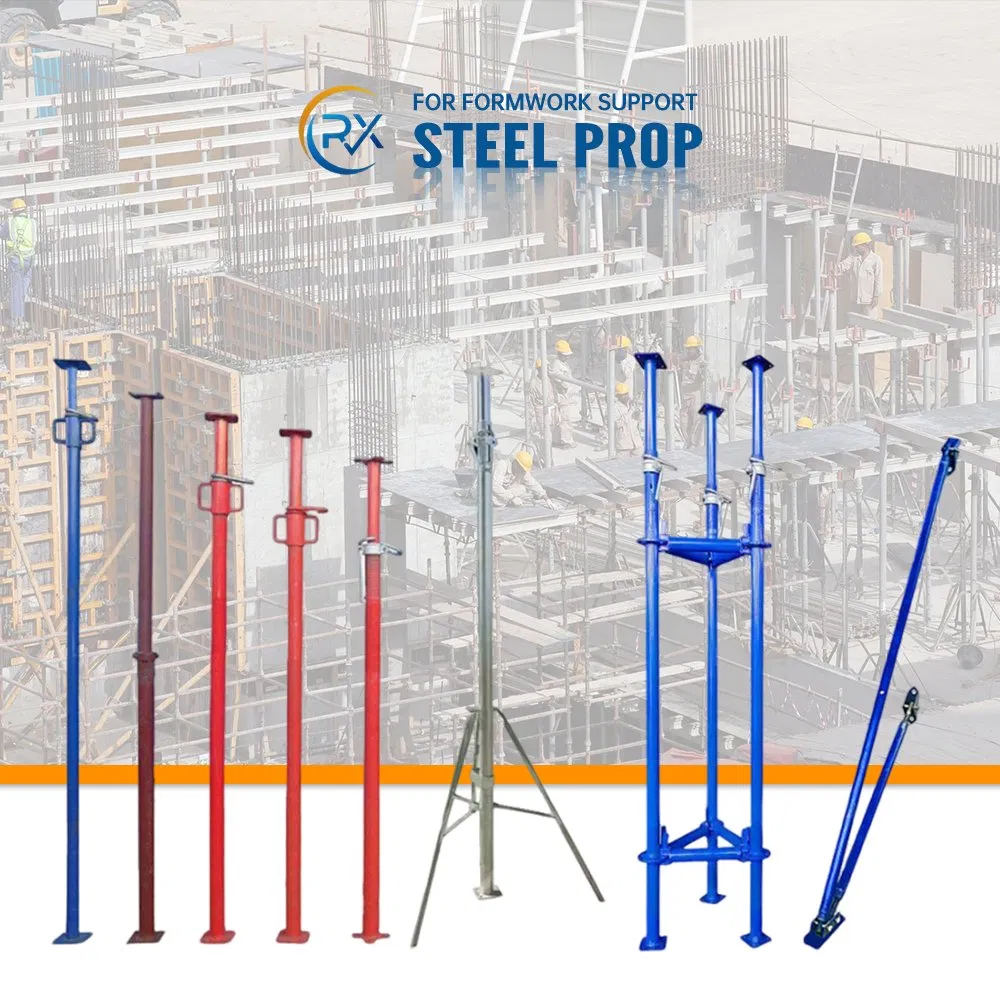

Adjustable steel props, also known as telescopic props, are essential components in construction and engineering projects. They provide critical temporary support to structures such as scaffolding, formwork, and falsework. Made of high-quality steel, these props consist of an inner and outer tube, where the inner tube slides to adjust the height precisely to meet project requirements.
| Type | Height | Inner Tube | Outer Tube | Plate | Weight | |
|---|---|---|---|---|---|---|
| 1.8 Thickness | 2.0 Thickness | |||||
| 48-60 Galvanized | 2.2-4m | 48mm (2.2m) | 60mm (1.8m) | 120/120*4 | 10.9kg | 11.9kg |
| 48-60 Galvanized | 2-3.5m | 48mm (2m) | 60mm (1.5m) | 120/120*4 | 9.8kg | 10.7kg |
| 48-56 Galvanized | 2.2-4m | 48mm (2.2m) | 56mm (1.9m) | 120/120*4 | 10.8kg | 11.8kg |

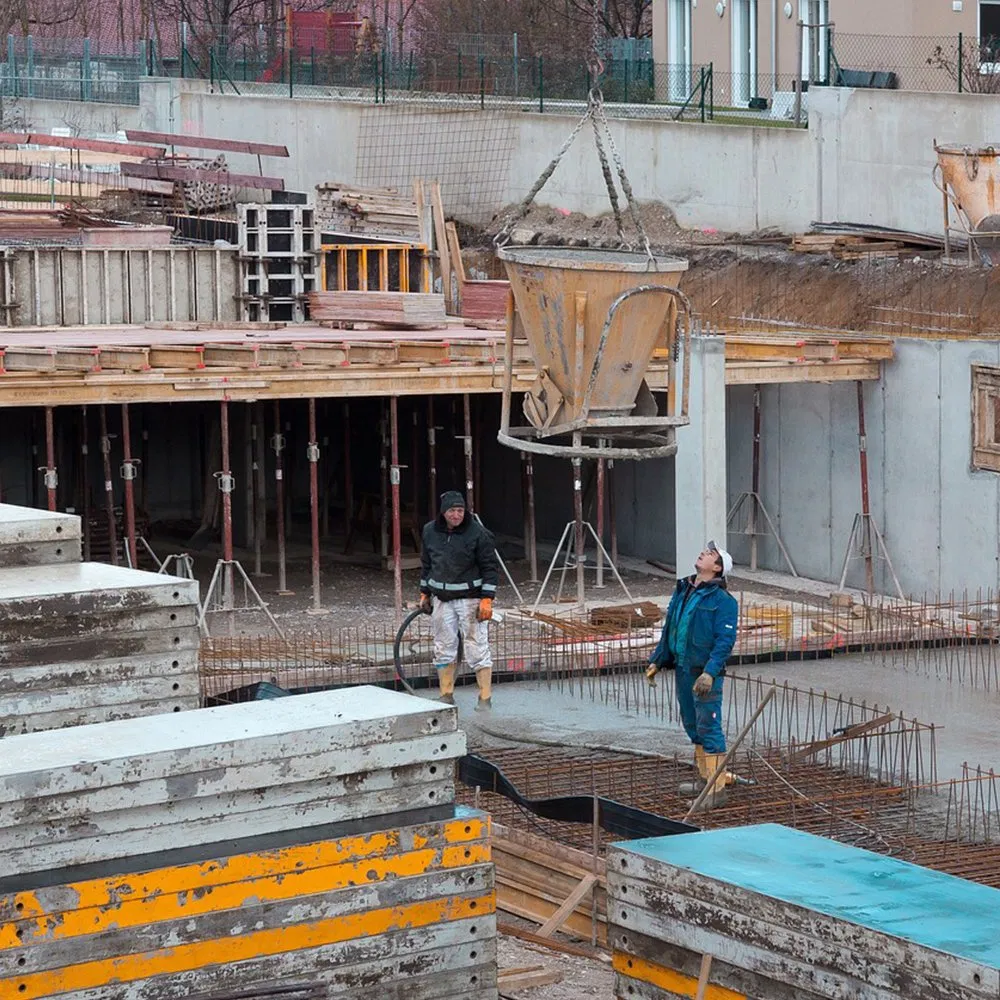

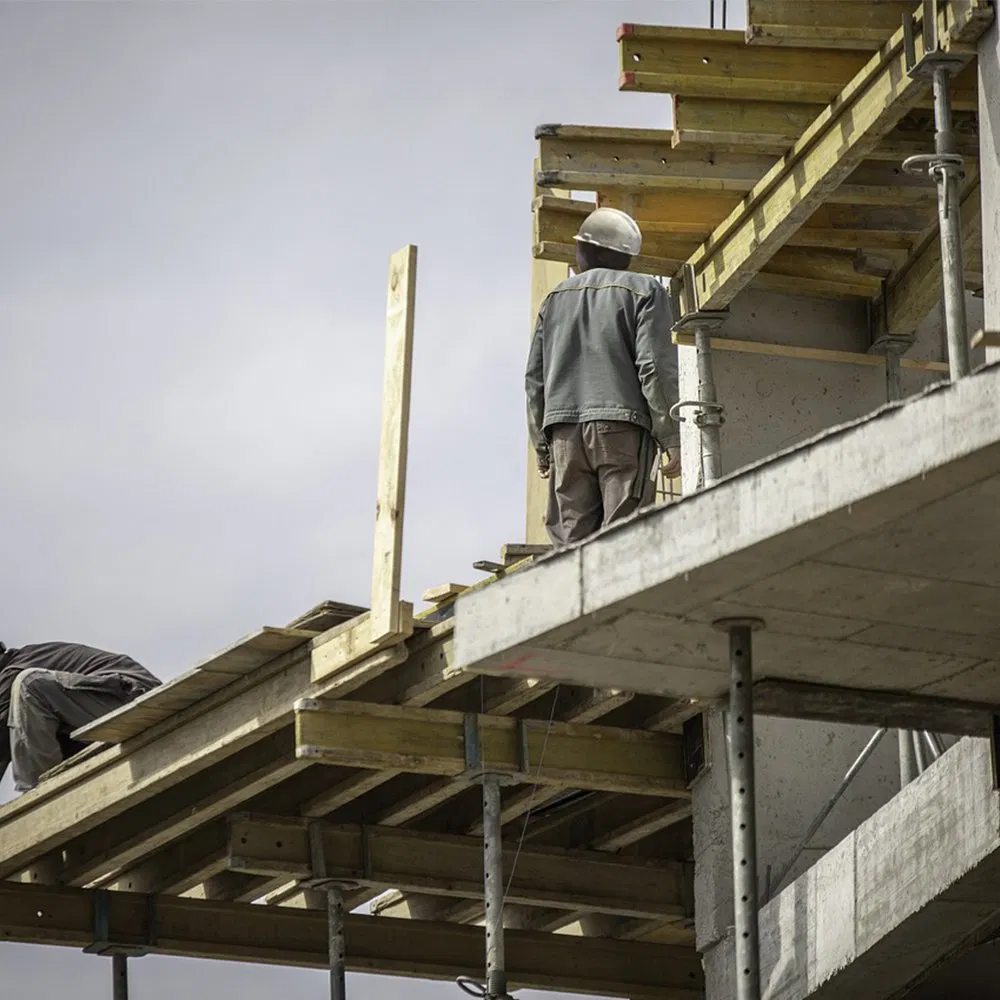

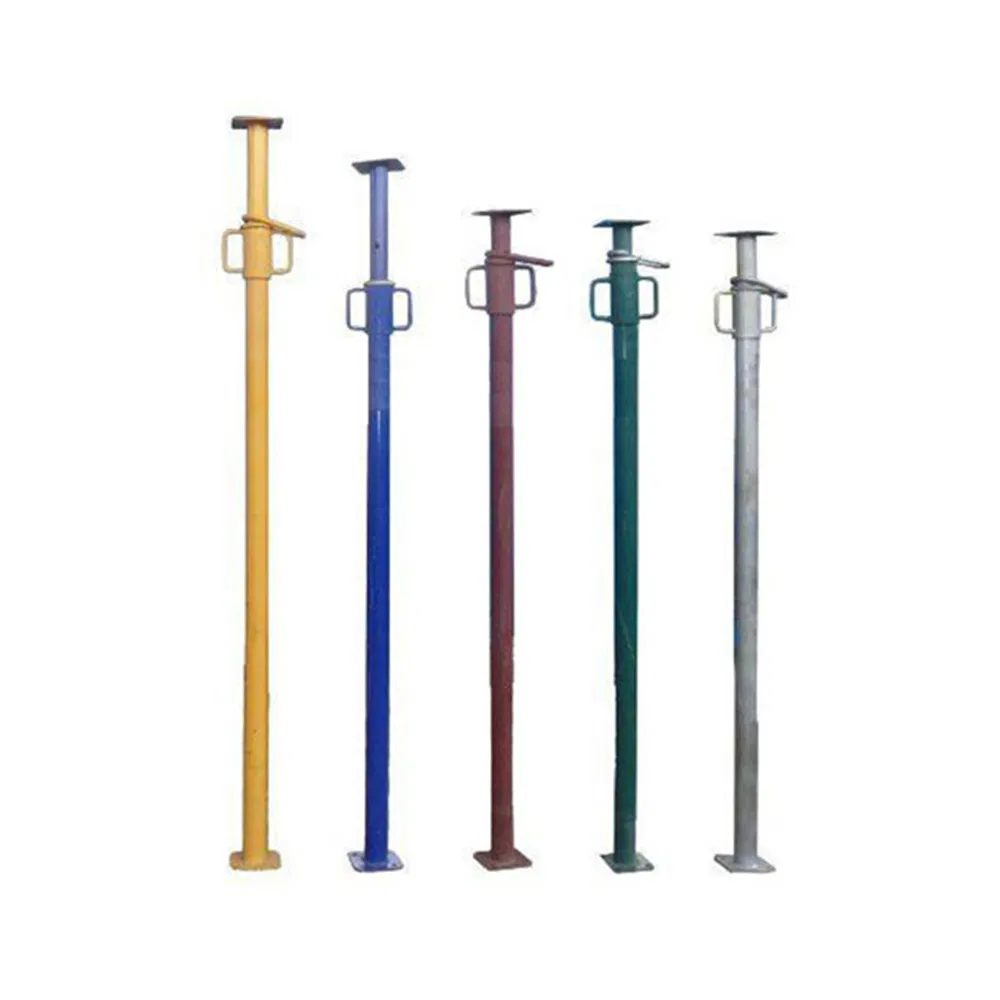

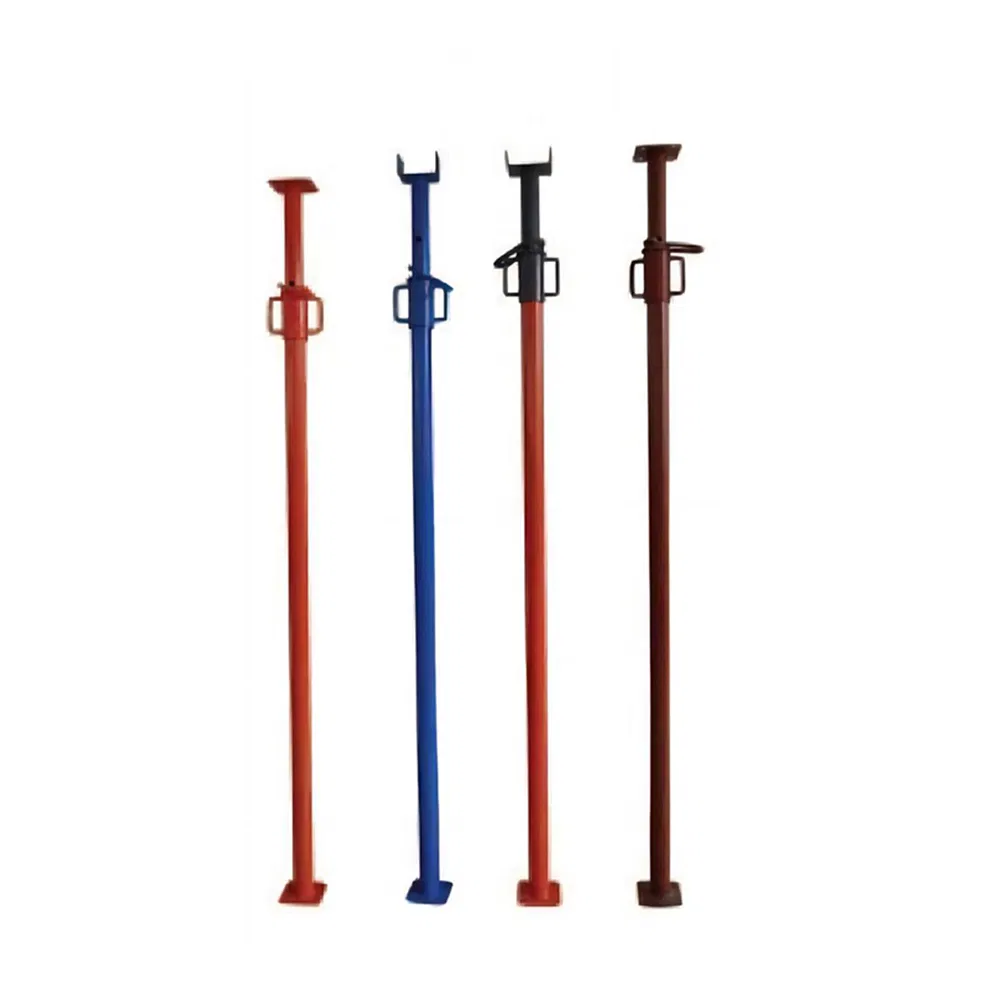

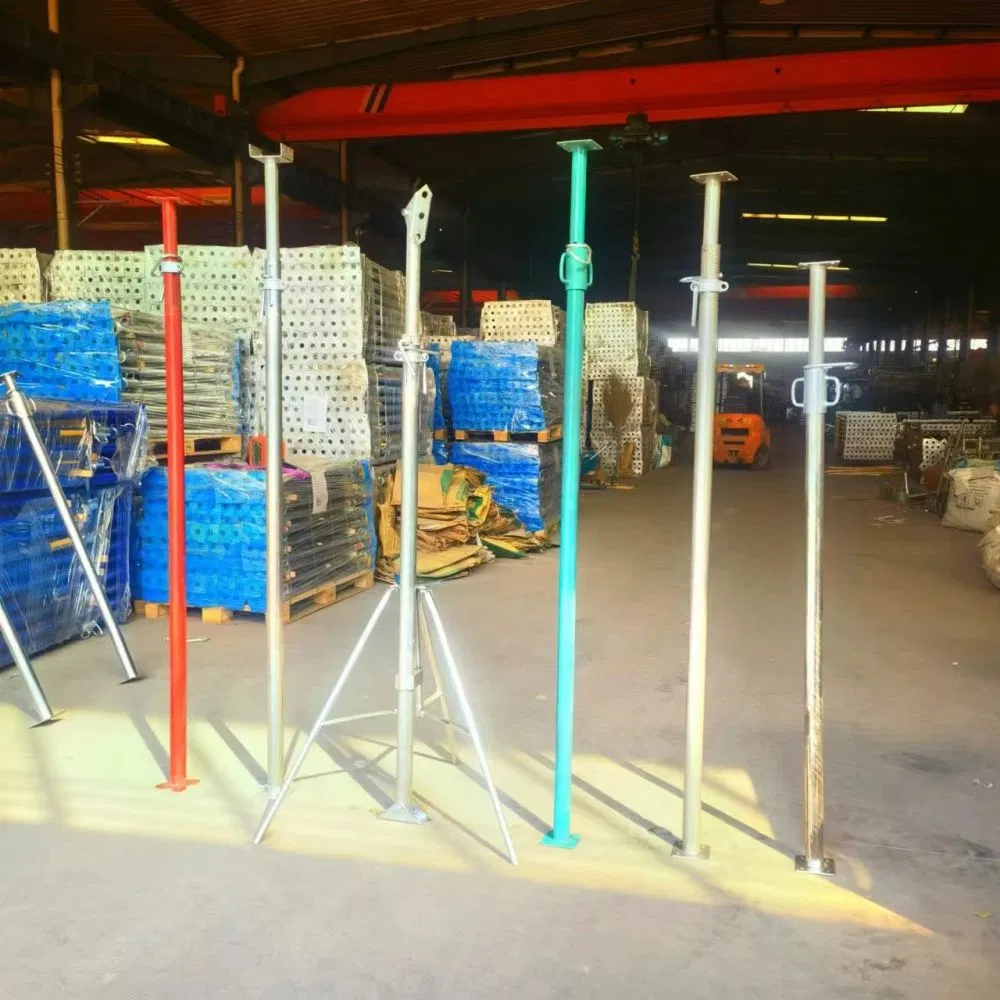

Adjustable steel props are the most common type, used to support vertical loads via a threaded mechanism. They are widely utilized for slab formwork of any shape.

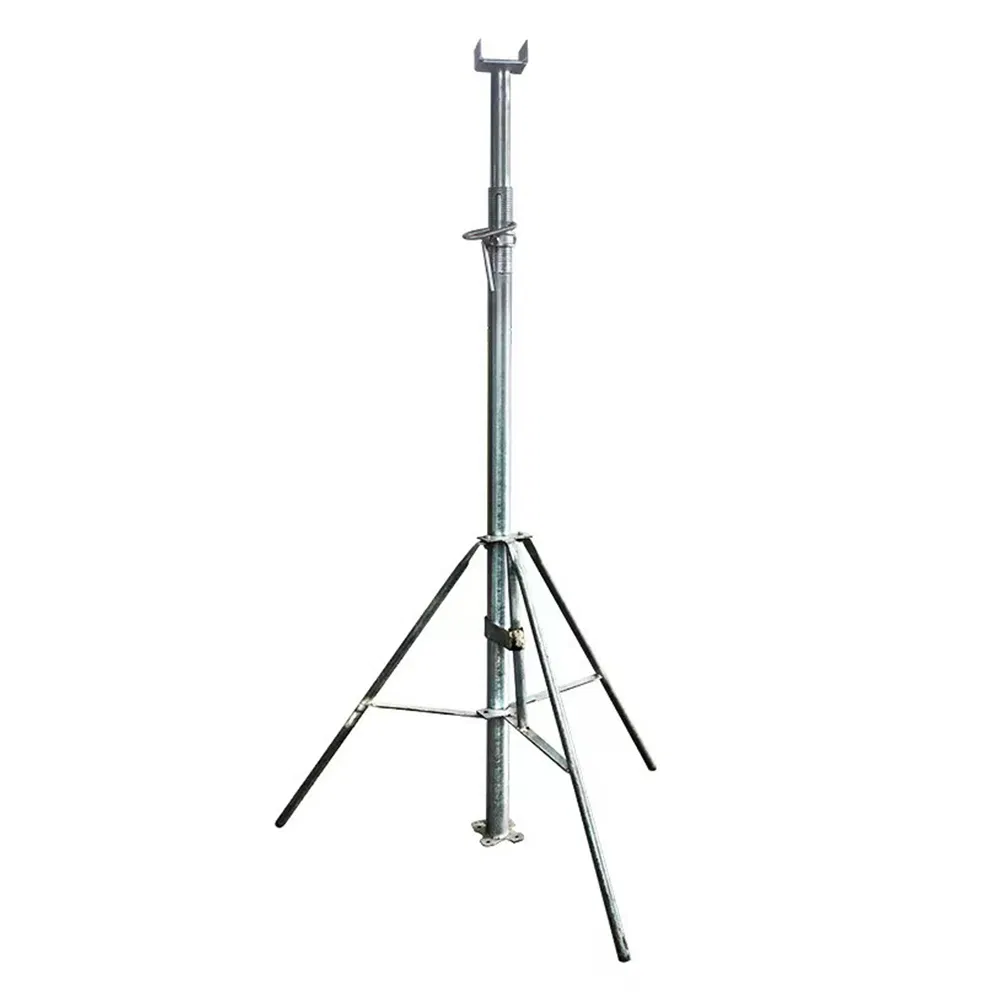

Tripods made from Q235 steel enhance the safety and stability of steel props. They are foldable for space-saving storage and transport.

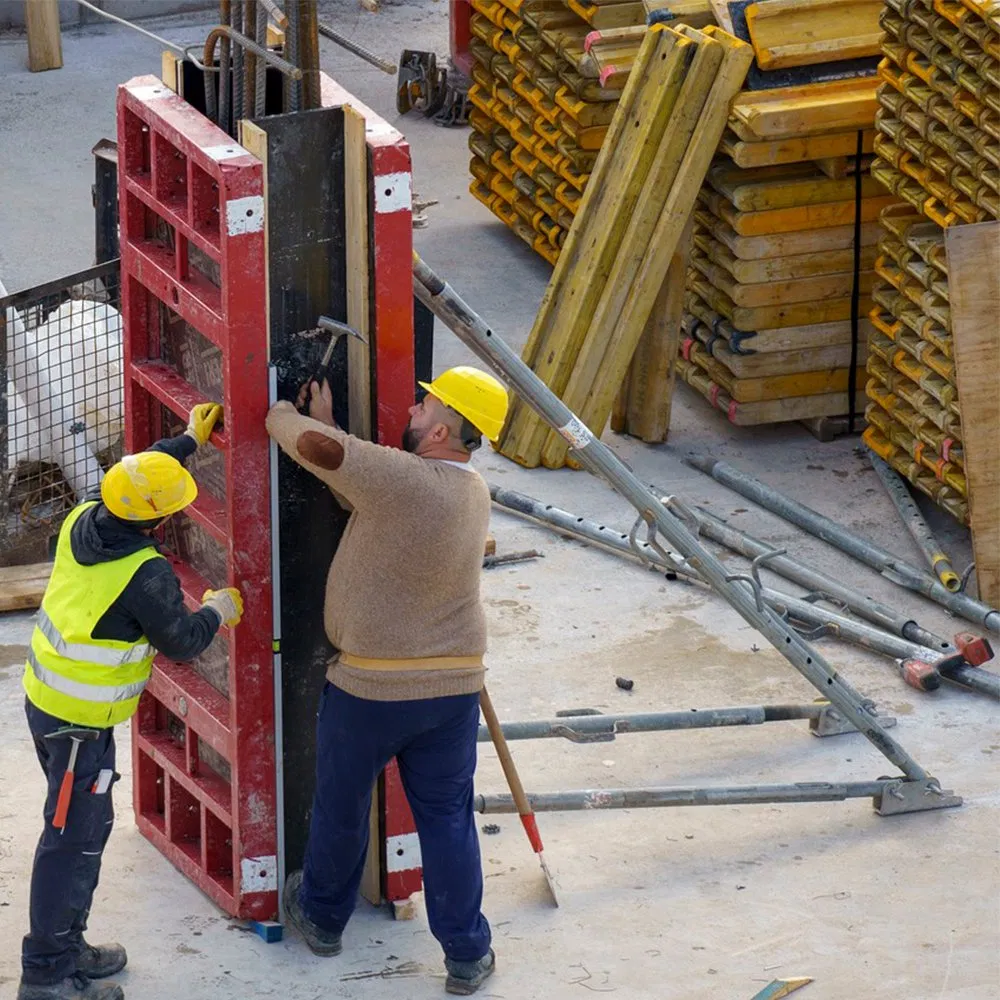

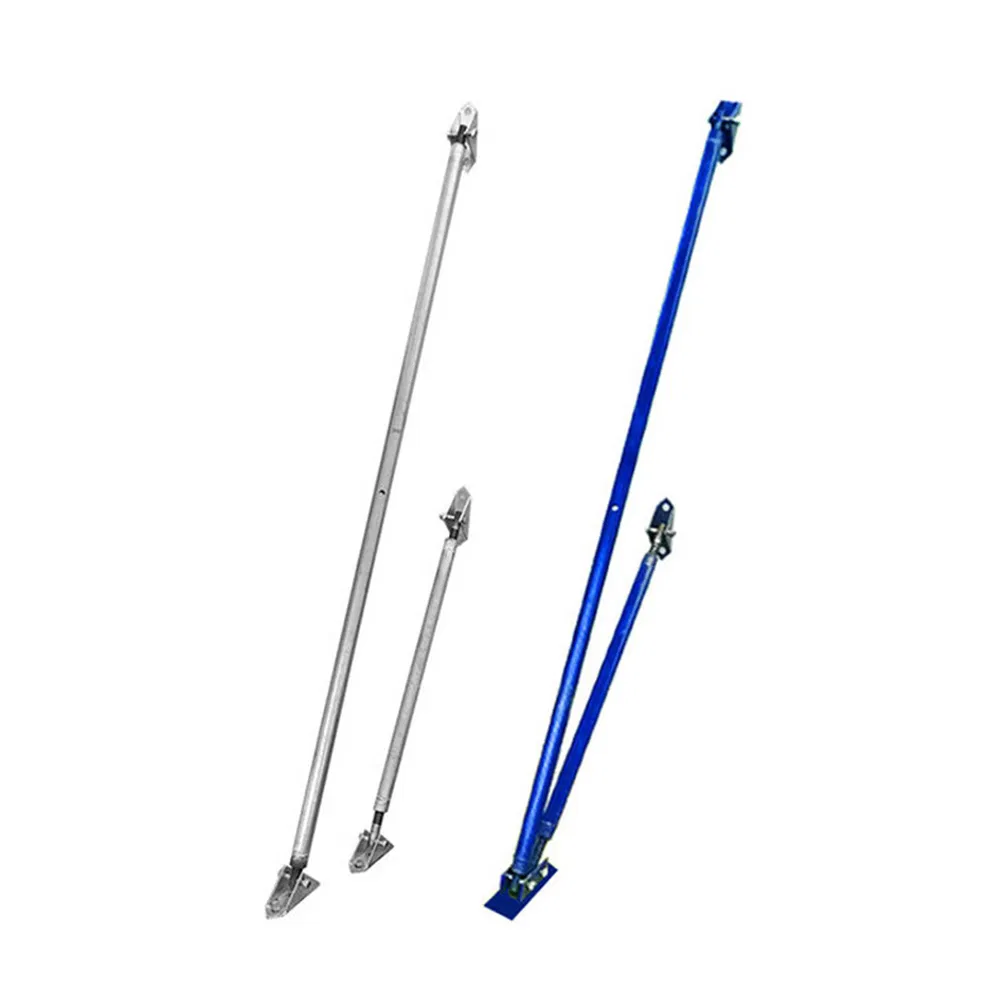

Also known as shore props, these support horizontal loads and align formwork at angles to transfer wind loads in concrete structures.

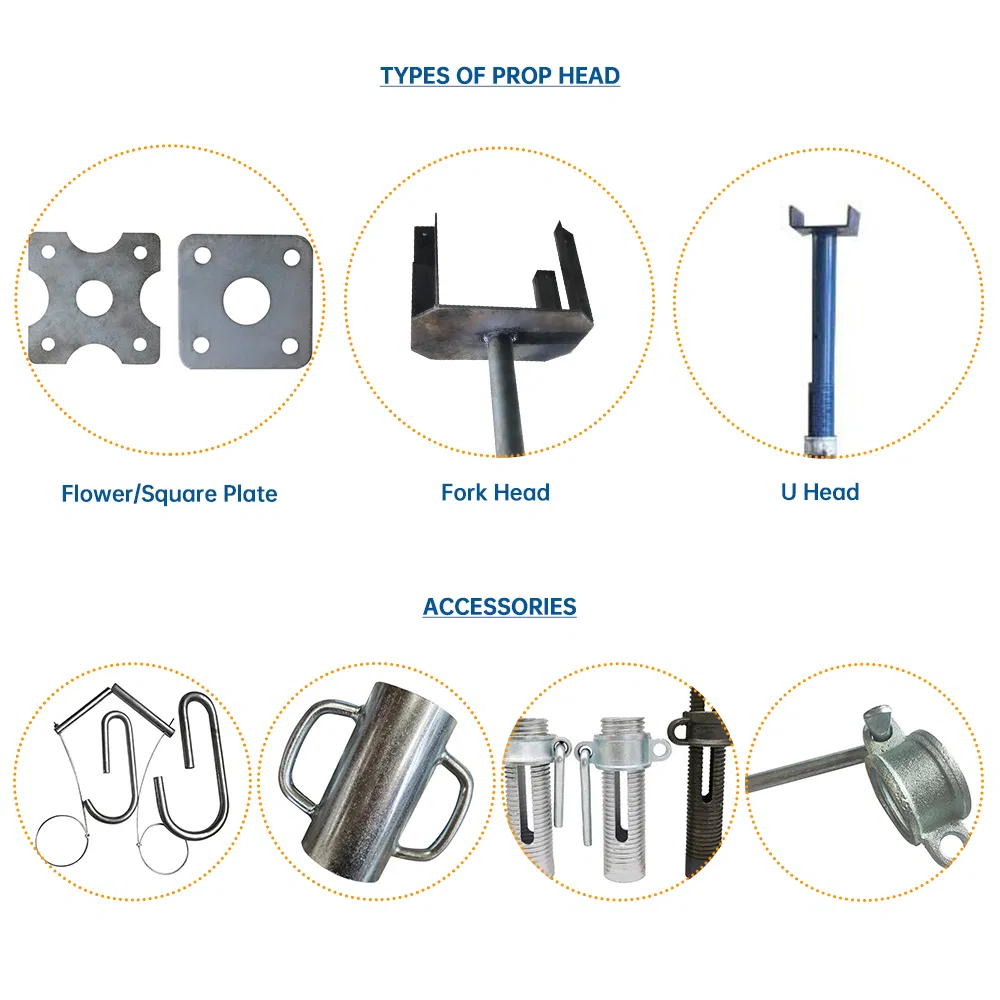

Components typically include a head and base plate, inner tube for bracing, and an outer tube with a threaded section. The self-cleaning prop nut allows for fine adjustments while maintaining maximum strength.

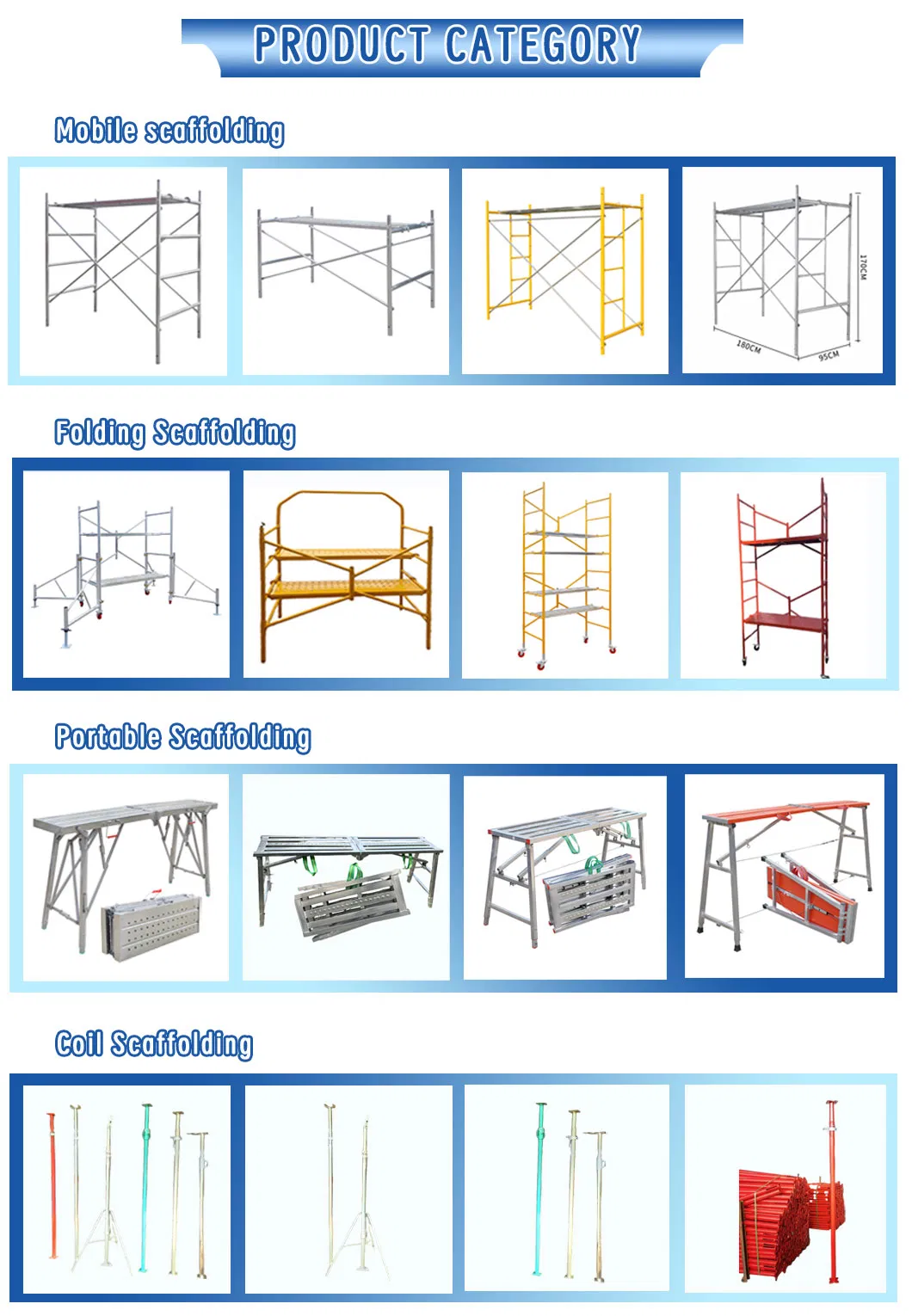

We offer professional production of safety ladders, scaffolding treads, galvanized steel springboards, steel supports, gantry scaffolding, and various scaffolding accessories.

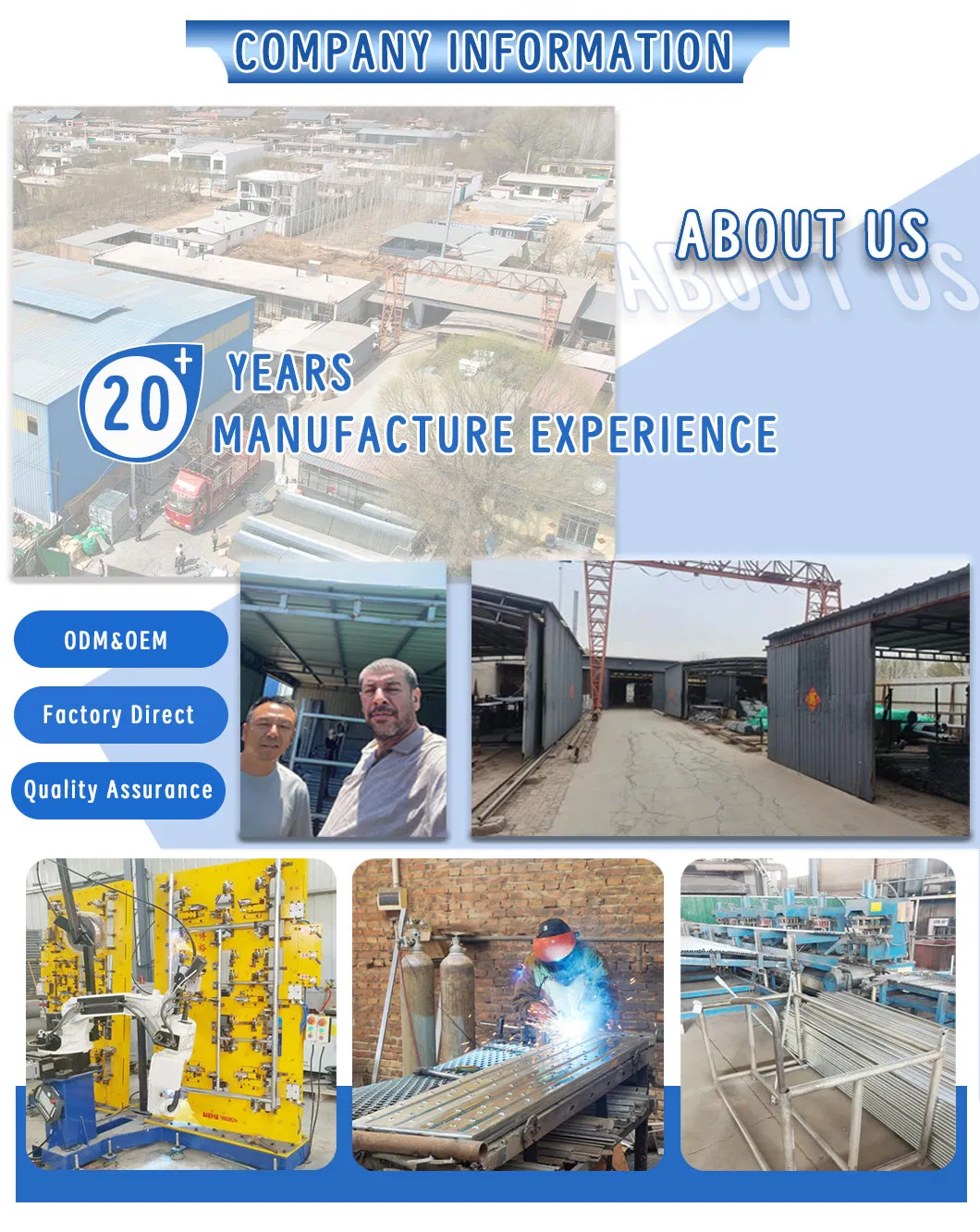

Operating with a complete and scientific quality management system, we focus on the production and processing of scaffolding for construction and decoration. Our integrity and product quality are widely recognized within the industry.
Our production philosophy centers on "quality first and customer satisfaction." We ensure rigorous quality control throughout the manufacturing process.
